ASA Part One

Since version 7.0 of the ASA code, configuring interfaces in the firewall appliance

is very similar to configuring interfaces in IOS-based platforms. If the firewall

connection to the switch is a dot1q trunk (the ASA supports 802.1q only, no ISL),

you can create sub-interfaces, corresponding to the VLANs carried on the trunk.

Do not forget to assign a VLAN number to the sub-interface. The native

(untagged) VLAN on the trunk connection maps to the physical interface.

When configuring the firewall interfaces do not forget to “no shutdown” them (as

they are down by default) and assign a nameif/security-level. The default

nameifs, such as “inside” and “outside” have security levels of 100 and 0

assigned automatically.

1. How to configure IP Addressing on ASA ?

• Configure ASA1’s interface Ethernet 0/0 using the nameif “outside” and

the security level of zero.

• Configure ASA1’s interface Ethernet 0/1 using the nameif “inside” and the

security level value of 100.

• Create new subinterface Ethernet 0/2.120 using the VLAN number 120,

nameif “dmz” and the security-level of 75.

2. Configuring RIPv2 on ASA ?

• Enable RIPv2 on ASA1 for networks 10.0.0.0/8 and 136.X.0.0/16.

• Ensure routing summaries are not generated automatically on the classful

subnets boundaries.

• Do not send RIPv2 updates out of any interfaces except to “Inside” and

“DMZ”.

• Configure RIPv2 on R1 using the network 136.X.0.0/16.

• Authenticate RIPv2 updates sent/received to/from R1 using the key-string

“CISCO”.

• Use the most secure form of authentication.

• Configure interface IP addressing per the diagram.

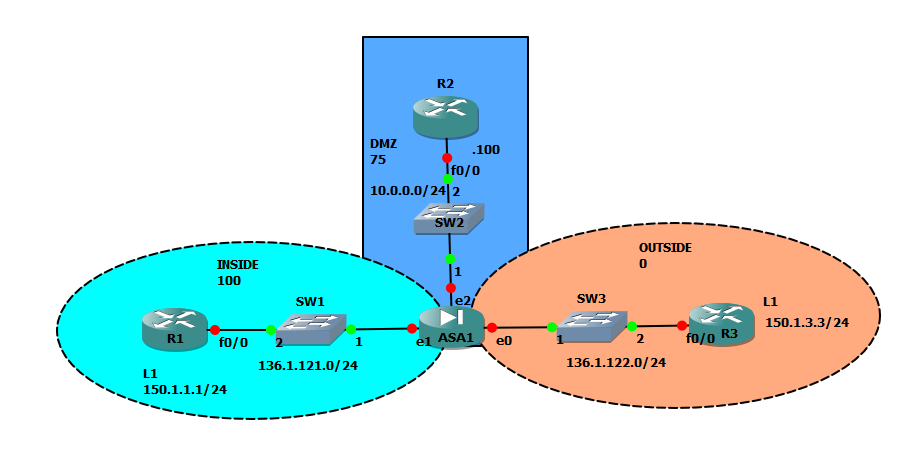

diagram:

Solution:

!

hostname A

enable password 8Ry2YjIyt7RRXU24 encrypted

names

!

interface Ethernet0/0

 nameif outside

 security-level 0

 ip address 136.1.122.12 255.255.255.0

 no shut

!

interface Ethernet0/1

 nameif inside

 security-level 100

 ip address 136.1.121.12 255.255.255.0

 no shut

!

interface Ethernet0/2

 no nameif

 no security-level

 no ip address

!

interface Ethernet0/2.120

 vlan 120

 nameif dmz

 security-level 75

 ip address 10.0.0.12 255.255.255.0

!

2. Configuring RIPv2 on ASA ?

-->

1) (Mandatory). Starting the RIP routing process and defining version 2 (almost

no one uses version 1 nowadays). Also, disable auto-summary as the legacy

classful protocol feature. This step is identical to the initial configuration of RIPv2

in IOS routers.

2) (Mandatory). Defining the networks where RIP updates will be send and that

will be advertised into RIP. You enter the networkstatements, defining classful

networks. RIP process finds all interfaces matching those networks, and starts

sending/receiving updates on those interfaces. At the same time, the local

subnets matching the networkstatement will be advertised in RIP updates.

3) (Optional). You define the passive interfaces, to limit the scope of interfaces

selected for sending RIP updates. Keep in mind that a passive interface never

sends any updates, but still accepts them. You may define ALL interfaces as

passive by using the command passive-interface default, and then

selectively enable some interfaces using the command no passive interface X.
This is what we’ve done in our scenario.

4) (Optional). Authenticate routing updates is needed. RIPv2 supports two

authentication types – plain text (non-secure, default) and MD5 hash. In both

cases, you define a key on the interface and configure this interface for proper

RIPv2 authentication mode. There could be multiple keys defined on the

interface, but only the first one is used to authenticate the incoming and outgoing

updates. However, with MD5 mode, other keys are used to accept incoming

updates with a matching key.

While routing has been pre-configured in routers, you still need to know how to

authenticate RIPv2 packets in an IOS router. The process is a bit different from

the ASA. First, you create a key-chain in global configuration mode, which may

contain one or more authentication keys. You then apply the key-chain to an

interface, configured for proper RIPv2 authentication mode (MD5 or plain-text).

The router will use the first key to authenticate the incoming/outgoing updates.

Other keys are used with MD5 authentication mode to accept the matching

incoming updates.

ASA1:

!

! RIP process configuration

!

router rip

network 10.0.0.0

network 136.1.0.0

passive-interface default

no passive-interface inside

no passive-interface dmz1

version 2

no auto-summary

!

! MD5 Authentication on the Inside interface

!

interface Ethernet0/1

rip authentication mode md5

rip authentication key CISCO key_id 1

R1:

!

! Key-chain configuration

!

key chain RIP

key 1

key-string CISCO

!

! Applying the key-chain and setting the mode

!

interface FastEthernet 0/0

ip rip authentication mode md5

ip rip authentication key-chain RIP

!

R1#sh ip protocols

Routing Protocol is "rip"

  Outgoing update filter list for all interfaces is not set

  Incoming update filter list for all interfaces is not set

  Sending updates every 30 seconds, next due in 12 seconds

  Invalid after 180 seconds, hold down 180, flushed after 240

  Redistributing: rip

  Default version control: send version 2, receive version 2

    Interface             Send  Recv  Triggered RIP  Key-chain

    FastEthernet0/0       2     2                    RIP

    Loopback1             2     2

  Automatic network summarization is not in effect

  Maximum path: 4

  Routing for Networks:

    136.1.0.0

    150.1.0.0

  Routing Information Sources:

    Gateway         Distance      Last Update

    136.1.121.12         120      00:05:42

  Distance: (default is 120)

!

A(config-if)# sh route

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

       E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

       * - candidate default, U - per-user static route, o - ODR

       P - periodic downloaded static route

Gateway of last resort is not set

C    136.1.121.0 255.255.255.0 is directly connected, inside

C    136.1.122.0 255.255.255.0 is directly connected, outside

C    10.0.0.0 255.255.255.0 is directly connected, dmz

R    150.1.1.0 255.255.255.0 [120/1] via 136.1.121.1, 0:00:09, inside

!
